16' Diameter Pulper Kvaerner Hymac Model: 16-3B-56; Capacity: 400 ADTPD; Ty

Manufacturer: Kvaerner Hymac
SKU: 126816

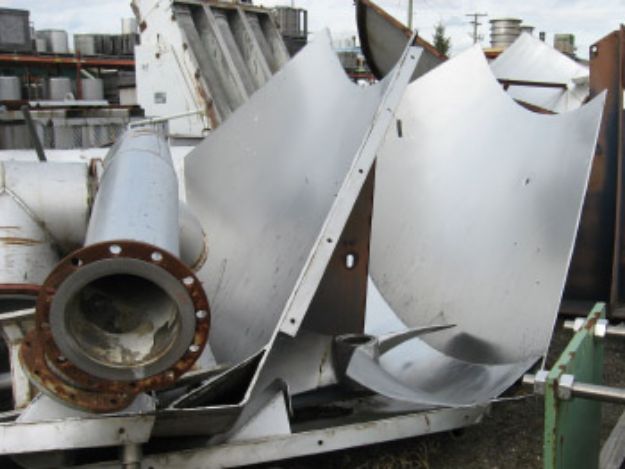

16' Diameter Pulper Kvaerner Hymac Model: 16-3B-56; Capacity: 400 ADTPD; Type: Batch Continuous at 6% Consistency. Dimensions: 16' Dia x 12' High; Extraction Plate (316 SS): 22.7% Open Area 5/8" Hole; 5-15 Minute Batch Time; Complete Drive Size 3B Bearing Housing with Hub Adaptor ; 75" Diameter Sheave 8V 10 Gr; 56" Rotor; Six (6) Baffles; Four (4) Legs. Motor Vertical Mount 400 HP 885 RPM 2300 Volts; Safety Guards Excluded Dismantled and Available for Immediate Shipment. Spare Available Separately: Turboflex Pulper Impeller; Pulper Shaft - Kvaerner Hymac Turboflex 3B Drive.
Products specifications
Equipment ClassPulp Mill Process
Capacity400 ADTPD
TypeTurboFlex Pulper
QuantityOne (1)
Metalurgy316 Stainless
Size16' Dia.
*
*
*
