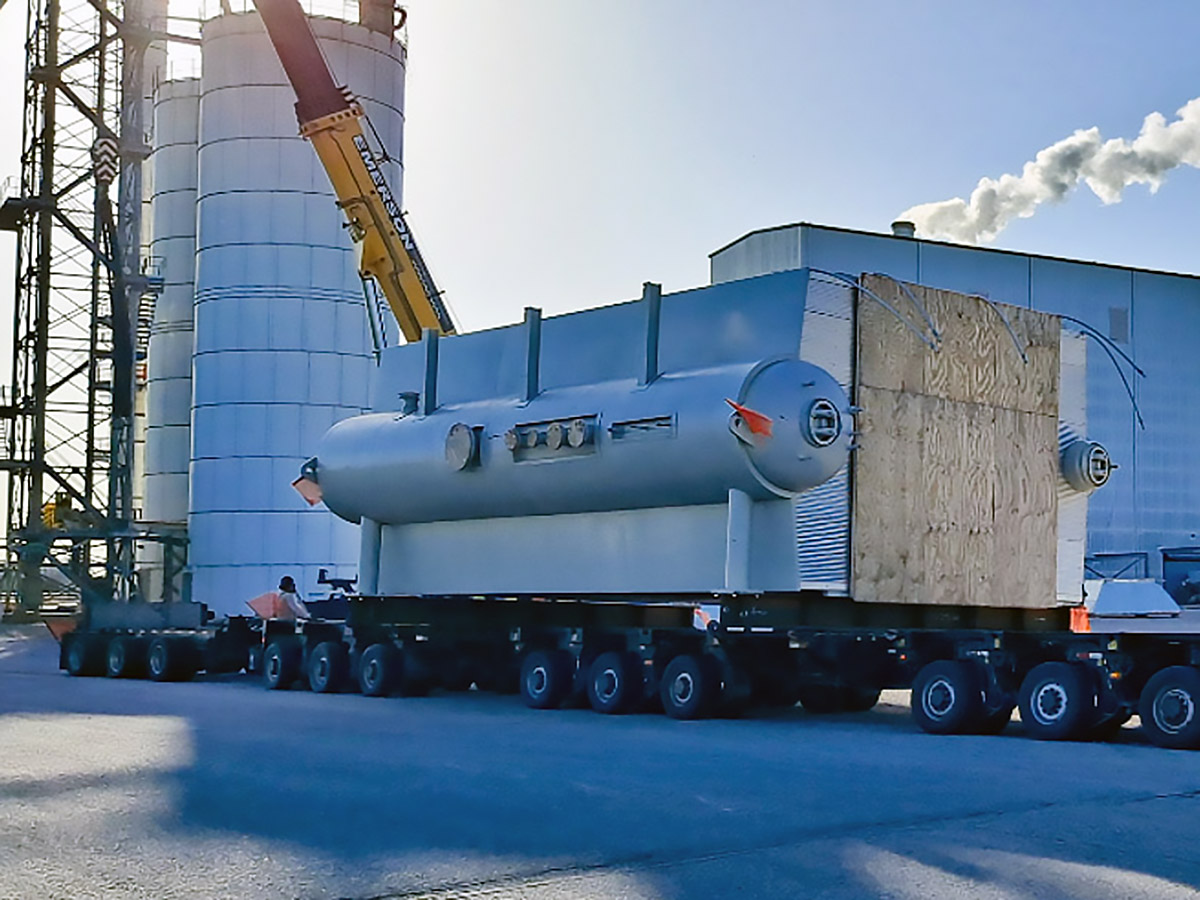

200,000 lbs/hr. Rentech HRSG with Supplemental Duct Burner

200,000 lbs/hr. Rentech HRSG with Supplemental Duct Burner. Type “O” Boiler. This Heat Recovery Steam Generator (HRSG) was designed for use with a Solar Titan 130 combustion turbine. Rated for 200k PPH at a MAWP of 400 PSIG with Feedwater Flow of 400 GPM at 228F. Includes: Natural gas fired duct burner system and fuel skid with gas train and flame supervision, rated at 136 MMBTU/h; Evaporator: "O" type tube arrangement with steam drum and mud drum, 2" tubes; Bypass Stack: 50 ft x 76" diameter; Exhaust Stack: 50 ft x 76" diameter; Economizer: Finned tube single pass. Boiler Control System: BMS - PLC controlled burner management system, CCS - combustion control system, HMI touch screen, Allen Bradley plc and HMI. All breaching and interconnected duct work is included. All new fabricated Ladders Gratings and Hardware are included. 3-D modeling of the complete boiler system including auxiliaries to assist in the system layout and to avoid costly installation fit-up issues is available. System was manufactured for a cancelled project and never installed. All available drawings and manuals will be included.
