932 HP Elliott Steam Turbine Generator

SKU: 467135

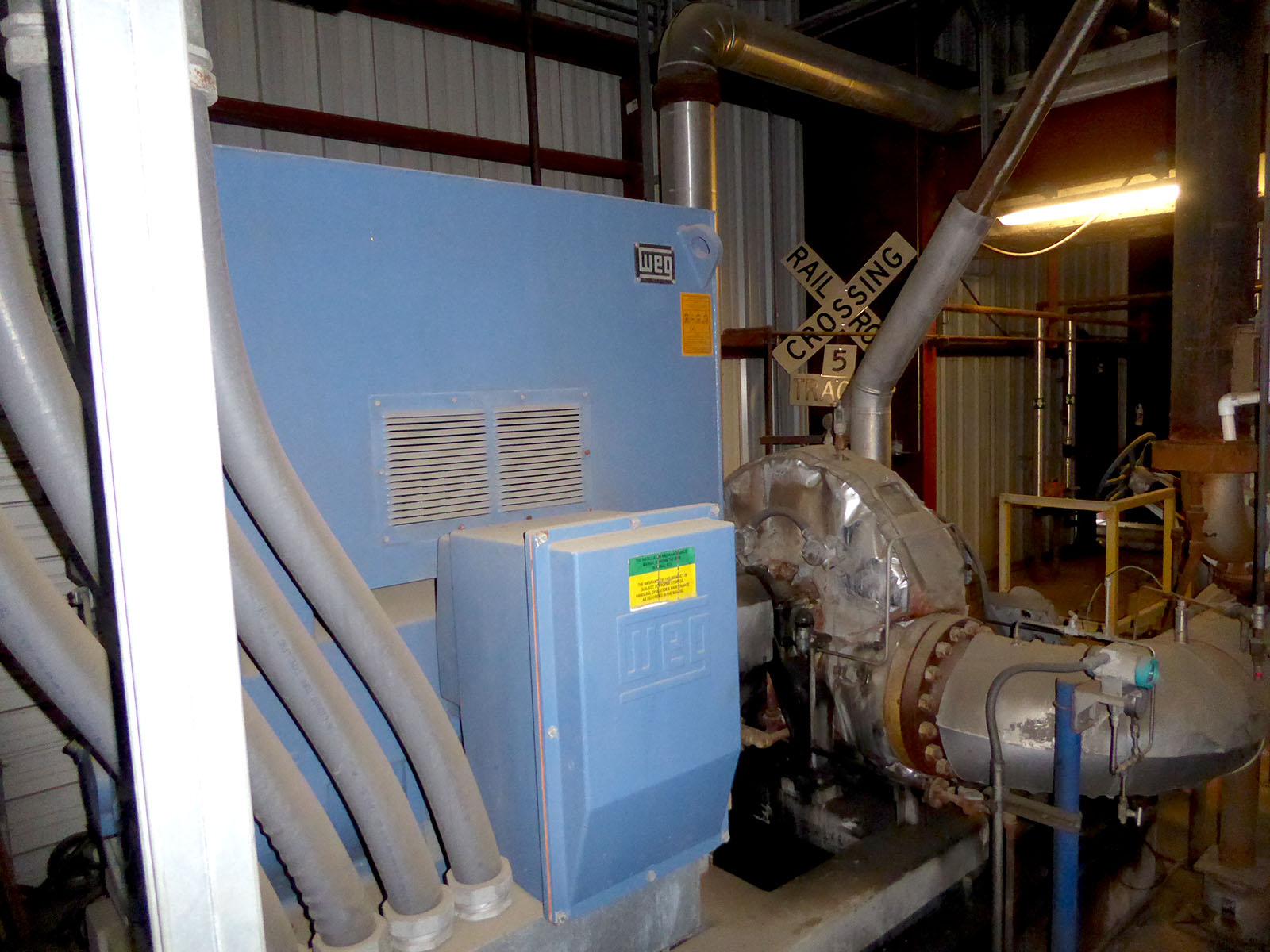

932 HP Elliott Steam Turbine with 655kw WEB Induction Generator. Year 2014. Turbine and Generator are mounted on a steel base frame. Turbine is powered by a Biomass Steam Plant. Steam conditions: 50,000 lb/hr. at 400 PSI / 448F Temperature. Inlet: 400 PSI; Exhaust: 150 PSI; Turbine speed: 3628 RPM.
Overall Dimensions:
142" x 72" x 83"

Weights:
Turbine:2450 Lbs.
Generator:7893 Lbs.
Base Frame:2944 Lbs.

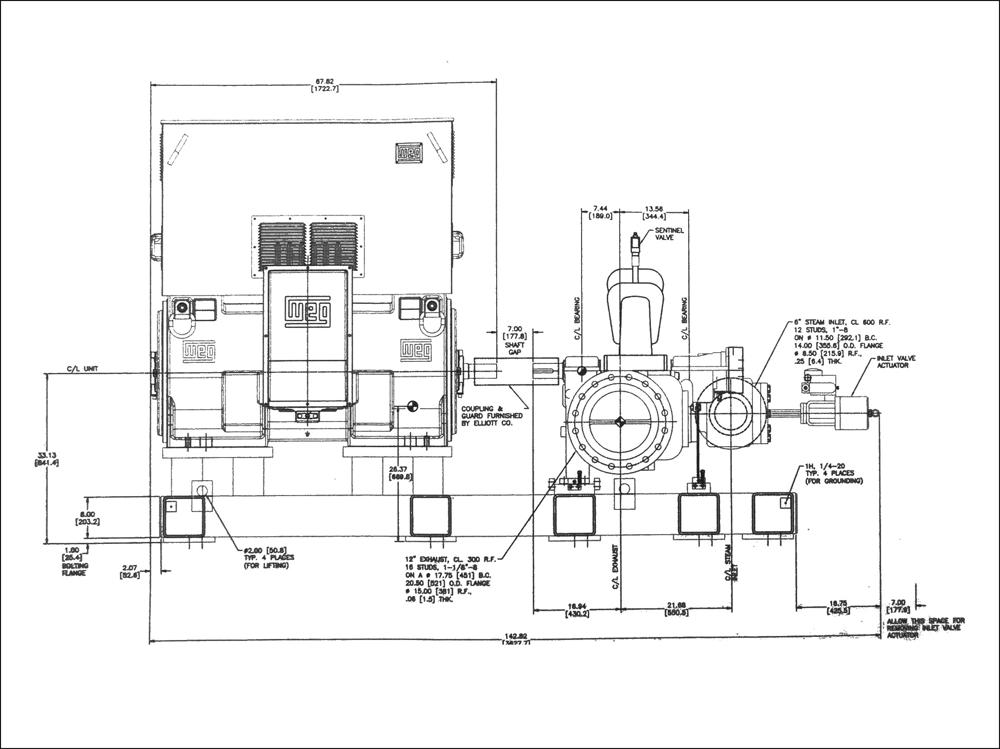

Drawings:
Elliott Steam Turbine
Products specifications
Equipment ClassSteam Turbine Generator
Design Characteristics400 PSI @ 448F Steam
TypeBack Pressure - 150 PSI
Year2014
ModelDYRHPE III
