| 500 HP Cleaver-Brooks Firetube Boiler; Model CBI-700-500-150; Year 2003; 150 PSI MAWP; Natural Gas Burner; Oil Pump; 15 HP Blower Motor, 480 V, 60 Hertz, 3-Phase. Pumps Available Separately. |
|
| 400 HP Hurst Wood-flour fired boiler system. Plant was new in 2007 and never started. The steam producer is a 400 HP Hurst Scotch Marine Boiler. Includes 16 MMBtu/hr. combustion chamber feeding exhaust gasses to the Hurst boiler. Includes MCC cabinets / drives, 400 HP Hammermill, Dust collector, Blowers, a Kentube Economizer, and Transformer. |
|
| 800 HP Cleaver-Brooks Firetube Boiler; Model CBI-700-500-150; Year 2000; 150 PSI MAWP; Natural Gas Burner; Oil Pump; 15 HP Blower Motor, 480 V, 60 Hertz, 3-Phase. Pumps Available Separately. |
|

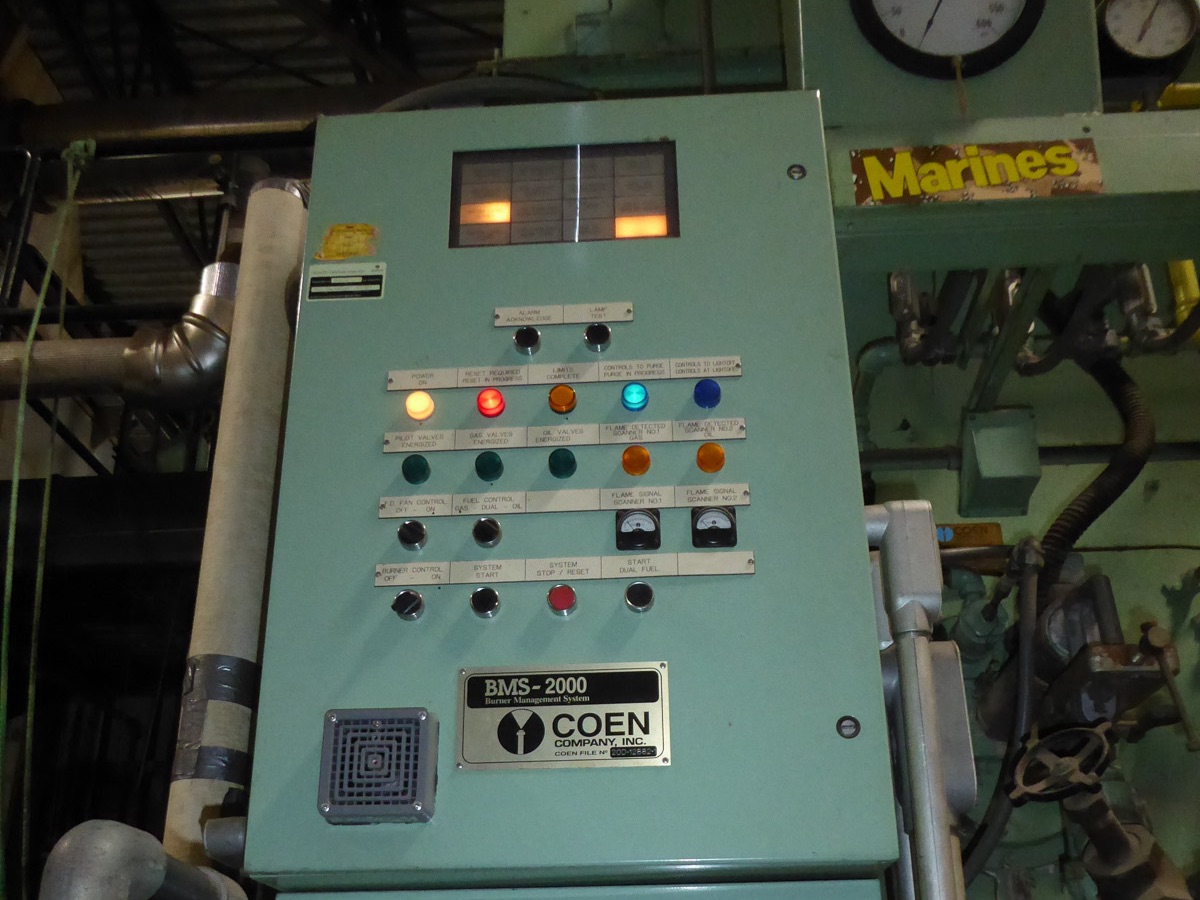

| 77,000 Lb/Hr. Nebraska Boiler Model: NS-E-63; MAWP: 300 PSI; Year 1996. Low NOx Coen Burner. BMS 2000 Burner Controls. Natural Gas Fired; Water Tube Boiler Design; Surface Area: 5346 Sq. Ft.; Economizer and Stack Included. DA Tank and Feedwater Pumps Available Separately. |
|
| 75,000 lbs/hr. B&W Water Tube Boiler; 250 PSI Design Pressure. Year 2014. Includes Low NOx Natural Gas Burner with Flue Gas Return, Burner Mfg. by Faber; Operating Pressure 150 PSI; Total Heating Surface: 5925 Sq.ft.; Dry weight: 88,900 lbs. |
|

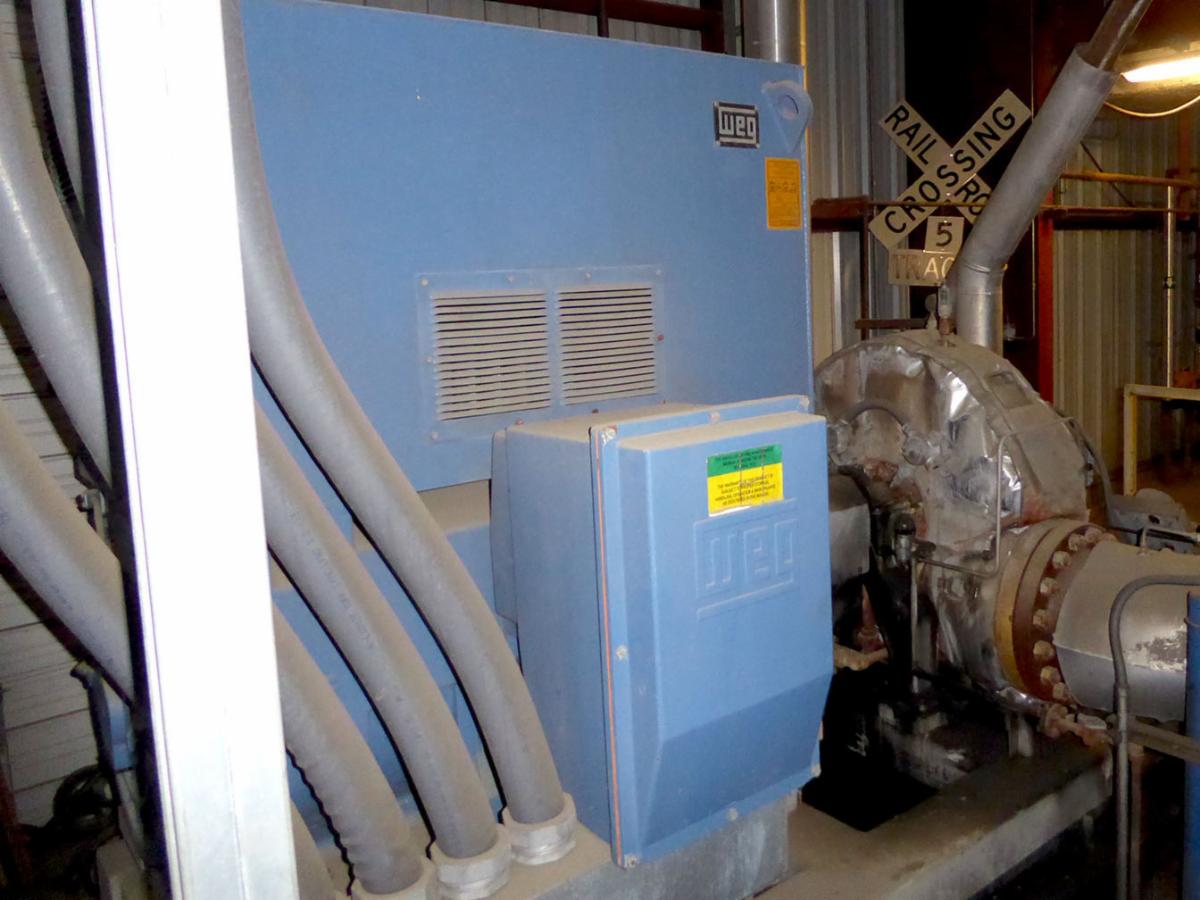

| 932 HP Elliott Steam Turbine with 655kw WEB Induction Generator. Year 2014. Turbine and Generator are mounted on a steel base frame. Turbine is powered by a Biomass Steam Plant. Steam conditions: 50,000 lb/hr. at 400 PSI / 448F Temperature. Inlet: 400 PSI; Exhaust: 150 PSI; Turbine speed: 3628 RPM. |
|
| Coppus Steam Turbine with Marathon Generator. Dresser Coppus RLHA 24 Turbine, Marathon Synchronous Generator, and Lufkin Gearbox. Year: 2013 Steam Flow: 31,500 lbs/hr Inlet Pressure: 150 PSIG Temperature: 366°F Inlet Size: 6 inch Exhaust Pressure: 15 PSIG Temperature: 250°F Exhaust Size: 10 inch Rated Output: 655 kW Turbine RPM: 5011 RPM |
|
| By Siemens / PrimeEnergy. Capacity: 50,000 Lbs/Hr. Saturated Steam at a Design Pressure of 150 PSIG. Fuel Consumption: 3.0 Tons/Hr. Blended Waste (Wood Flour and Shredded Polyester). PrimeEnergy Gasification process is suitable for wood and wood waste, processed municipal solid waste (RDF), agricultural residues, paper mill sludge, wastewater treatment sludge, Carpet and more. Offered separately for this system is a 400 HP Industrial Shredder, Granutech-Saturn Systems Model# M240H. |
|
| 1500 HP Hurst Hybrid Biomass Boiler with 1.0 MW Erie Back Pressure Turbine. Boiler Capacity: 51,750 Lbs/Hr.; Surface Area: 9,750 Sq.Ft.; MAWP: 450 PSI; Model: HYD9750-450-1; Year 2009. Reciprocating Grate Stoker Design. Complete System Available - DA Tank through Stack. |
|
| ** Three (3) 80,000 Lb/Hr. Nebraska Boilers, 250 PSI, Model NS-F-72, Water Tube Boilers,Year 1998. Natural Gas Fired, Coen DFL-600 Burners. Complete with common DA Tank, Water Treatment, and Feed Water Pumps. Each with ERI Economizer, Stack, FD Fan and Motor. ** One (1) 74,500 Lb/Hr. Nebraska Boiler, 250 PSI, Includes separate DA Tank and Feedwater Pumps. |
80,000 Lb/Hr., Nebraska Boiler, Model NS-F-72, Water Tube Boiler, Design Pressure: 250 PSI, Natural Gas Fired, Coen DFL-600 Burner. Capacity: Three (3) Identical Boilers. Available Engineering and Drawings included. Boilers available separately or together. |
|
|
|
|
|
|
