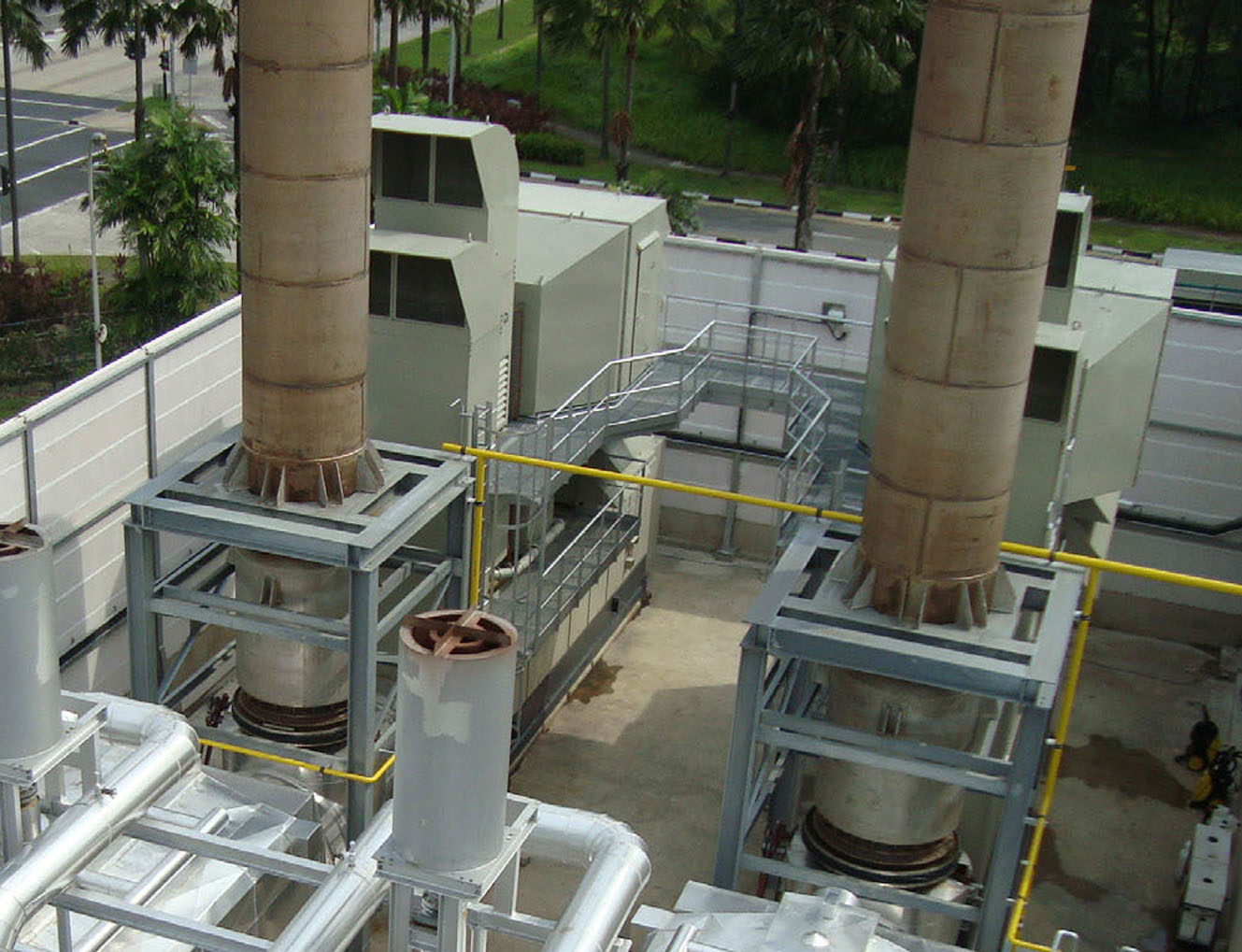

Cogeneration Equipment

6745 kw Siemens SST-110 Steam Turbine Generator, Year 2018. Single Stage Back Pressure Turbine Design. Inlet Steam: 90,000 #/hr Steam at 850 PSI and 650 F. Exhaust Steam: 90,000 #/hr at 46 PSI and 375 F. Exhaust Steam Pressure is variable depending on process conditions. Includes: 8750 KVA AC Synchronous Generator Manufactured by TD Power Systems, Type TC150. Capacity: 7.0 MW / 13.8kV / 60 Hertz. Year 2018. System used less than one year due to complete plant closure. All controls and MCC panels are available. Desuperheater is available to control exhaust steam temperature. SPARE TURBINE ROTOR ASSEMBLY INCLUDED.

11.25 MW GE Model 10 Simple Cycle Turbines. Quantity (4) Units in Operation since 2001 with less than 700 total hours lifetime fired. Include Dry Low NOx plus SCR GE Air Cooled electric generators GE Speedtronic MKVI Controls. 14250 kva each / 13800 V / 10892 btu/kwh.

5.2 MW Solar Taurus 60 Enclosed Generator Sets Quantity: Three (3). Electricals: 3Ph / 60Hz / 4160 Volt; Fuel: Natural Gas or Landfill Gas. New in 2001 with following Hours and Starts: Unit #1 - 15715 hours / 269 starts; Unit #2 - 20232 hours / 474 starts; Unit #3 - 15167 hours / 293 starts. Packages include the following equipment: Lube oil coolers fire cylinder cabinet neutral ground resistor switchgear Air intake housings oil filter skids exhaust spool pieces turbine exhaust stacks Donaldson air filters rain hood skids air intake ducts oil heater skids.

3.0 MW Solar Centaur T4701 Open skid inside a building. 747 hour Turbine Engine. 1992 vintage package 3.0 mw Ideal generator- 4160 volt Generator breaker – MCC – battery charger fire and gas bottles Natural gas fired exhaust silencer PLC controls.

45.3 MW Generation Capacity, Westinghouse / Seimens 251B 12A Gas Turbine Generator with steam cogeneration boiler, (HRSG). Year 1997. 60 Hertz / 13.8 kV. Natural Gas Fired. Dry Low NOx System. Last Hot Gas Path 2007. Speed 5427 RPM. Lufkin Gear Reducer to 3600 RPM. BRUSH Generator (brushless) 69.3 MVA, 0.85 pf, 13.8 kV. Capable of burning Fuel Oil. HRSG Boiler Specifications: 225,000 lbs/hr Steam @ 200 PSI (Unfired), 450,000 lbs/hr Steam @ 200 PSI (w/Supplemental Duct Burners). Superheated Steam Temperature of 450F Deg. HRSG Includes: Integral deaerator with LP drum/storage tank, Superheater, IP drum, IP boiler bank, economizer Desuperheater at SHO, CO catalyst. Equipment well maintained in very good condition. All documentation and controls included. Auxiliaries include 2 AC lube oil pumps, 1 DC lube oil pump, local control room, boiler feed pumps, 2400 V starting motor package, 480 V substation and MCC's, inlet NOx trim control, continuous emissions monitors, GT water wash skid, fire protection systems, WDPF II DCS for GT control, Bailey INFl-90 for balance of plant control, HVAC for control rooms.

Two (2) 4.6 MW Solar Turbines, Model Centaur 50-6201. Designed for Dual Fuel operation, (#2 Oil / Gas); Unused (New) Surplus; SoLoNOx Combustion System, 25/96 ppm NOx, Dual Fuel; Engine Model 6201SA. Generators are by Kato, 4160 V, 60 Hz, 1800 RPM. Direct Drive AC Start System.

28 MW GE Steam Turbine Generator. 32.4 MVA / 60 Hertz / 13.8 kV. New Steam Path 2007 Generator rewind in 2007 with GE Micapal winding insulation. Mark V Governor installed year 2000. Designed for 680000 PPH steam at the inlet with two (2) extraction points at 150 PSI and 60 PSI and the balance of steam is condensed. Includes all auxiliaries except excitor. Originally manufactured 1968. Well maintained with any available spares included.

One (1) used 1000 KW Elliott Steam Turbine Generators Rebuilt Quantity of Two (2) available. Back Pressure Steam Turbine Model BYRH UG; Power: 1350 HP; Inlet Steam Pressure: 600 PSI; Steam Temp: 750 F; Exhaust Pressure: 155 PSI. Generator Set is complete with Turbine Gearbox and Generator mounted on steel frame skid.

One (1) used 1.05 MW Elliott Steam Turbine Generators Rebuilt Quantity of Two (2) available. Back Pressure Steam Turbine Model BYRH UG; Power: 1350 HP; Inlet Steam Pressure: 600 PSI; Steam Temp: 750 F; Exhaust Pressure: 155 PSI. Generator Set is complete with Turbine Gearbox and Generator mounted on steel frame skid.

655 kW Steam Turbine with Generator. System includes, Dresser-Rand Coppus RLHA 24 Turbine, Marathon Synchronous Generator, and Lufkin Speed Reducing Gearbox. Year 2013. Turbine Generator Skid: A common steel base is provided for the turbine, speed reducing gear and generator. The turbine and gear are coupled with a Lovejoy flexible stainless steel disc spacer type coupling, dynamically balanced to a maximum 2.5 mm/sec of vibration and meeting ISO G2.5. The generator and gear are coupled with a Lovejoy gear-type coupling with a 1.5 service factor. Coupling guards are installed over both couplings. Skid piping includes all piping necessary to collect condensate drains, steam leak offs and instrument air to single field connection point. Manual globe valves are installed in condensate drain lines for startup condensate removal. Skid wiring includes all conductors and conduit necessary to consolidate terminations for all skid instrumentation and control devices in a common terminal box.

932 HP Elliott Steam Turbine with 655kw WEB Induction Generator. Year 2014. Turbine and Generator are mounted on a steel base frame. Turbine is powered by a Biomass Steam Plant. Steam conditions: 50,000 lb/hr. at 400 PSI / 448F Temperature. Inlet: 400 PSI; Exhaust: 150 PSI; Turbine speed: 3628 RPM.

250000 LB/HR; 900 PSI; Deltak HRSG designed for use with an LM6000 gas turbine generator unused surplus new in 2001. Includes Duct Burners. This heat recovery boiler produces both Low and High pressure super-heated steam. As originally delivered the Deltak HRSG included: Duct Burner – Natural Gas Fired; High and Low Pressure Boiler SuperHeater and Economizer; Complete Feedwater System; Valves; Support Structural Steel; Fuel Skid; Platforms Walk ways and Stack.

46500 Lbs/Hr. Deltak HRSG 21 Tons/Hr steam flow 13.79 Bar (200 PSI) Operating Pressure 17.24 Bar (250 PSI) Design Pressure HRSG YOM 1996 in very good condition. HRSG includes the following equipment Diverter (bypass) Valve Economizer Boiler (Evaporator) Bypass Stack All transition Ducts Stack. Also can include a DA Tank and Feedwater Pumps. All Available Documentation Included.

Two (2) Thermax, Series 5G, single effect hot water driven vapor absorption chillers engineered to each produce 1015 tons of chilled water at 42 °F of using 17,374 MBH of recovered heat from a waste heat hot water boiler. Thermax Absorption Chillers, New 2012. The chillers will be capable of operating in-series as well as in parallel mode.

Donaldson Air Inlet Filter designed for operation with the Taurus 70 Solar Gas Turbine. Built for Solar Turbines. Includes Chiller for Inlet Air to keep temperature at 59F. Year NOV 2011. Weight 5783 Lbs. Dry / 7983 Wet.
