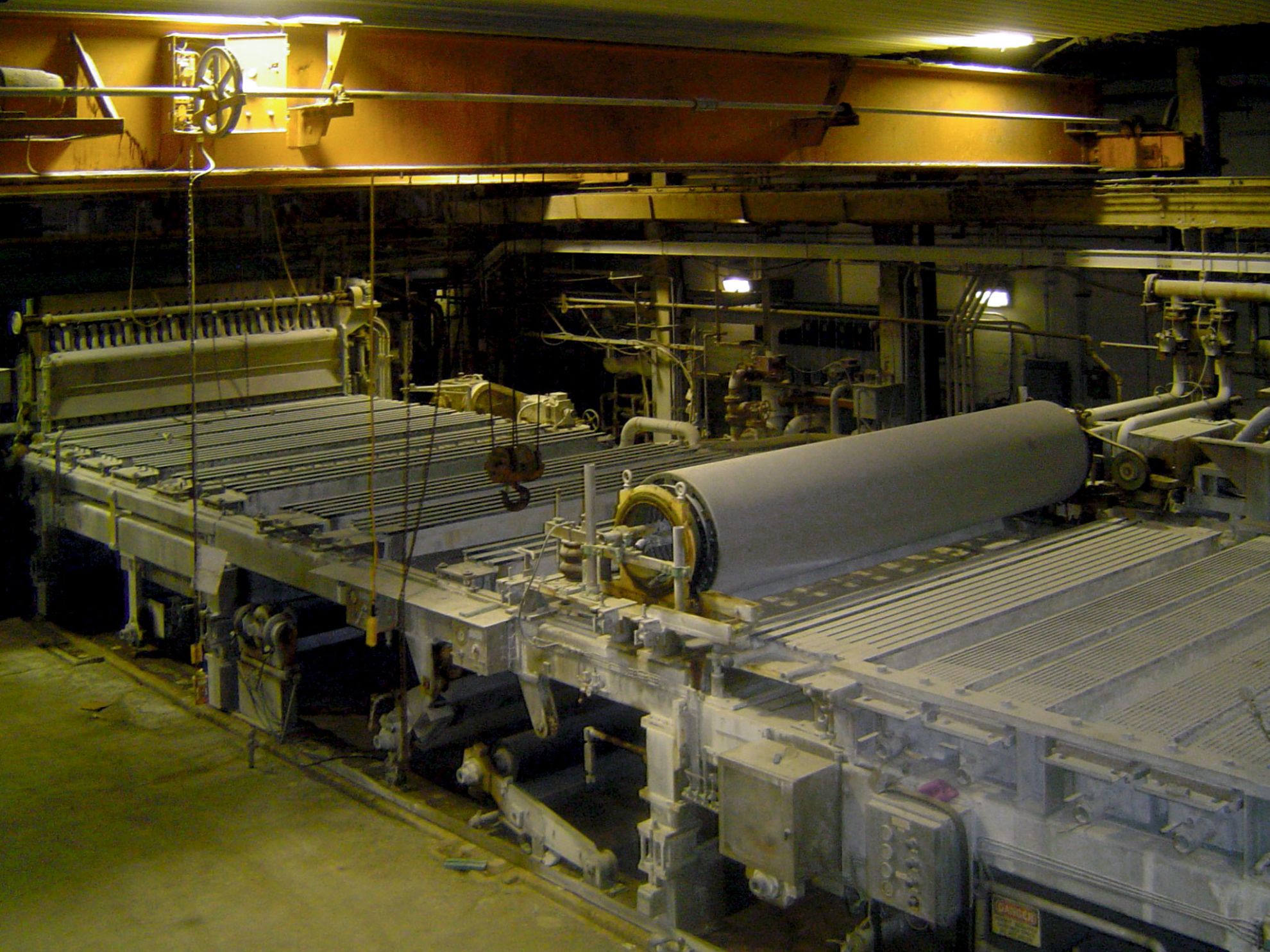

Paper Mill Equipment

Diablofiner II; 1130 Sq.Ft.; Detrashing/Reject Sorter Max PSI 45; Year 2006.

Demineralized water system 167 GPM Reverse Osmosis Skid with anti-scalant chemical injection system. Manufacture Tenergy Christ. Includes controls: Alan Bradley micrologix 120 PLC with (2) 60" multimedia filters in excellent condition year 2004.

0.5" Mag Flow Meter Mfg. Foxboro. Model 280H-SBBA-TPA-G. 60 Hertz 120 volts Corrosion resistant construction. Class 150 lbs.

1" Mag Flow Meter Mfg. Foxboro. Model 8001-WCR-AG. Used in conjunction with Model 8000-SA10-F Flowe Transmitter for A-1 Check bleed flows.

1" Mag Flow Meter Mfg. Foxboro. Model 8001-WCR-AG. Used in conjunction with Model 8000-SA10-F Flowe Transmitter for A-1 Check bleed flows.

6" Mag Flow Meter Mfg. Foxboro. Model 2806-SABA-TTA-G. 60 Hertz 120 Volts Max Amps: 2.0A Max Pressure: 240 PSI at 160F 160PSI at 350F.

12" Mag Flow Meter Mfg. Foxboro Model: 2812-SBBA-TSM-G. For use with IMT96 Transmitter for A-1 and A-2 Basis Weight Flow.

Escher Wyss Suction Drum Roll; 137" Face; 128" Drilled Face; 36" Diameter Bronze Cover

111” drill face x 24” diameter Manchester suction press roll bronze shell 118” overall face 133.5” bearing centers. Suction box has 4” opening includes doctor and creeping assemblies.

Beloit Suction Couch Roll 188" Drilled Face 201.5" Overall Face 230" Bearing Centers 38" Diameter 5/8" Hole Diameter 7/8" Shell Thickness Rubber Cover Spare Rebuilt By Hamilton Machine Year 2010 Rebuilt So5355

Manchester Suction Couch Roll 142" Bearing Centers 125" Face 118.5" Drilled Face 1/2" Hole Diameter 1" Roll Cover Thickness 25.31" Roll Diameter Bronze Cover

Lightnin Agitator Drive Model 825 0 200 20.3/1 Ratio 200 Hp Rating 86 Rpm Cw Rotation

Impco Pulp Mixer Model 500 single shaft 24" inlet 24" outlet 92" long body side discharge.

Sunds Defibrator Model DKB 80 Year 1989 Volume 0.6 m3

Ingersol Rand Clove Rotor; Model# N379-R-83; Quantity (2)

Beloit 44" 304 SS Model 4996 Belcor detrasher. 250HP V-Belt Drive. Manufactured 1981. Chamber capacity approximately 90 Cu. Ft. (2.55 cu.m.). Low profile impeller. Extraction plate with 5/32" (3.97mm) diameter holes. 8" (203mm) inlet 14" (356mm) outlet 6" (152mm) drain and 6" (152mm) heavy rejects openings. Designed for 275 TPD (249MTPD) 3 - 3 ½ % consistency but capable of doing up to 465 tpd (421 MTPD) depending on the application.

Ultrasorter Size 30 Tailings Screen by Black Clawson . New 2000. 316L Stainless Steel Construction. Belt driven 50 HP 1200 RPM motor. 2 ½% Maximum feed consistency. Approximately 30 BDTPD but capacity will vary according to the specific application. 6" (152mm) Inlet plate flange and 8" (203mm) accepts plate flange. Equipped with a screenplate with conically drilled holes. Can be used in a paper machine approach system secondary fiber screening or in a pulp mill screening system.

Falk Model No.2110y1-LD Gear Drive 7.786/1 Ratio; 1197v Input RPM;153.7 Output RPM; 268 Service Rating HP; 1.34 Service Factor; 8.5 US Gallons W/ Base; L-115 W-70 H-55

Falk Model No. 2100Y1-LD; Gear Drive 6 .786/1 Ratio; 1200 Input RPM 176.8 Output RPM 153; Service Rating HP 2.2; Service Factor 6.8 US Gallons; w/ Base; L-100 W-70 H-50

1500 hp Falk Gear Reducer Model 2135Y1-LS2 Ratio 3.433; RPM IN: 1750; RPM OUT: 510.
